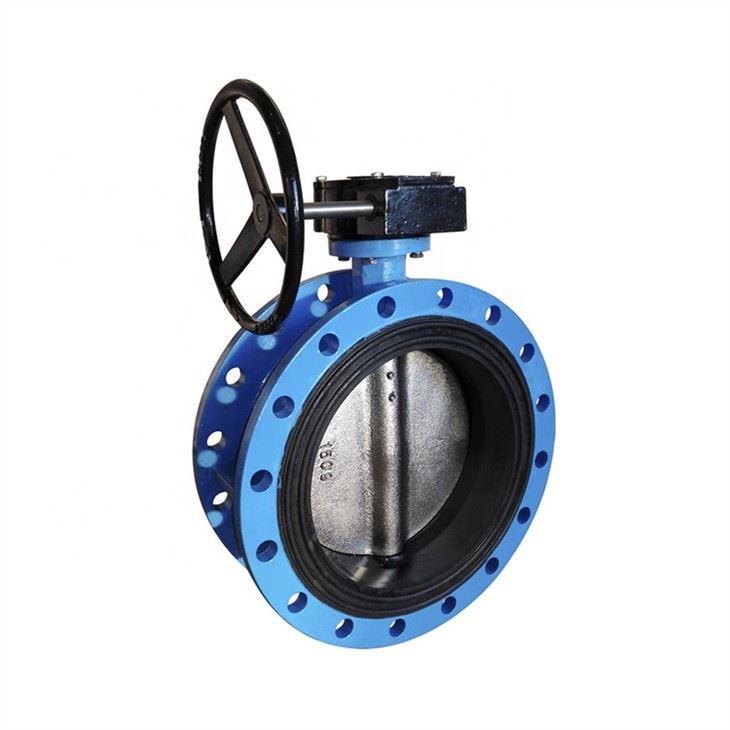

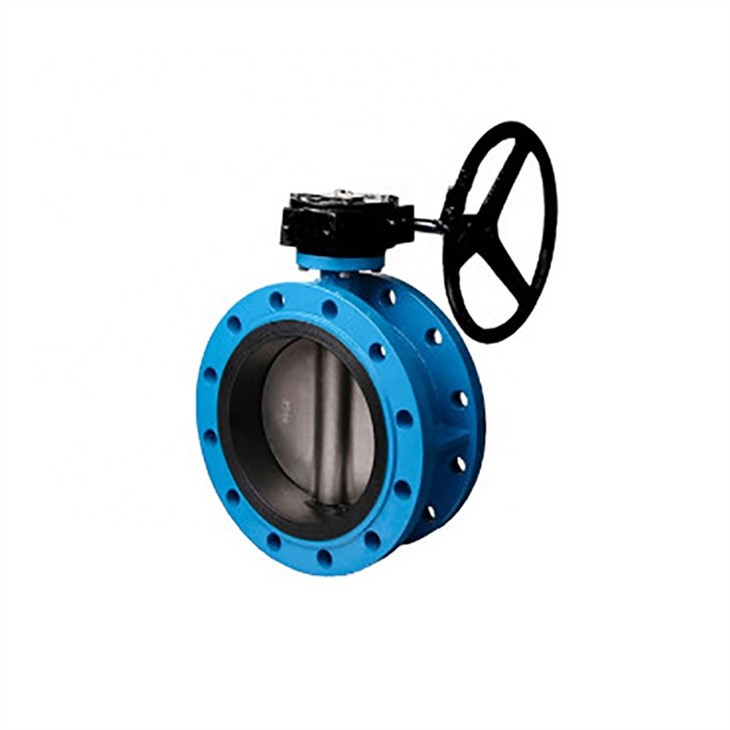

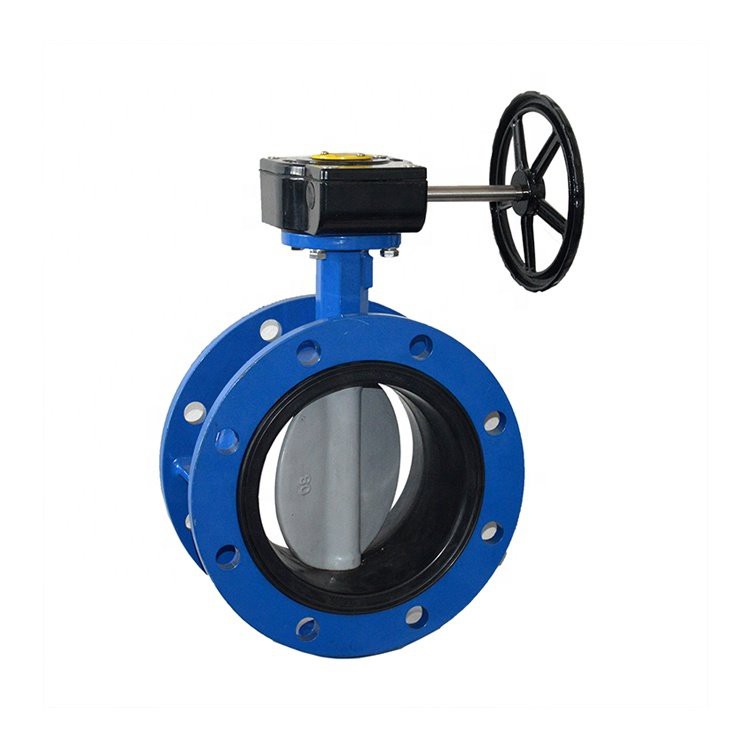

Double Flanged Eccentric Butterfly Valve

Introduction:

Welcome to our Double Flanged Eccentric Butterfly Valve, the solution for all your fluid control needs. Our valve is specially designed to help you control the flow of fluids through pipes, tanks, and other systems with ease. We are a leading manufacturer based in China, catering to customers from various countries outside of China. Our mission is to produce and deliver high-quality products that meet international standards and exceed our client's expectations.

Features:

Our Double Flanged Eccentric Butterfly Valve is a versatile valve that guarantees accurate flow regulation of fluids. Some of the key features of our valve include:

1. High-quality construction: We use premium quality materials to manufacture our valve to ensure that it is sturdy, durable, and long-lasting. Our valve is made of cast iron, steel, or ductile iron, with a rubber-lined disc to help minimize friction and ensure a tight seal.

2. Eccentric design: Our valve has an eccentric design that makes it easy to operate and maintain. The eccentric design allows the disc to move away from the seat as it opens, reducing the possibility of damage caused by fluid flow.

3. Pressure resistance: The Double Flanged Eccentric Butterfly Valve is designed to withstand high pressure, making it ideal for use in demanding operational conditions.

4. Versatility: Our valve is designed to meet the needs of various applications, including HVAC systems, water treatment plants, oil refineries, and pharmaceutical plants.

Benefits:

Our Double Flanged Eccentric Butterfly Valve comes with numerous benefits to ensure optimal performance and maximum customer satisfaction. Some of the benefits include:

1. Easy installation: Our valve comes with flanges that allow for easy installation and removal without the need for any specialized tools. The valve can be bolted onto existing piping systems with ease.

2. Smooth operation: Our valve has a smooth operation that ensures the easy and effective regulation of fluid flow through the system.

3. Low maintenance: The simplicity of our valve's design allows for easy maintenance, lowering the risk of downtime and reducing maintenance costs.

4. Cost-effective: Our valve is designed to offer maximum efficiency at an affordable price, making it a cost-effective solution for clients.

Applications:

The Double Flanged Eccentric Butterfly Valve is a versatile valve that can be used in various applications, including:

1. HVAC systems: Our valve is ideal for use in heating, ventilation, and air conditioning systems to regulate the flow of air and fluids through the system.

2. Water treatment plants: Our valve is used in water treatment plants to regulate the flow of water through the system.

3. Oil refineries: Our valve is used in oil refineries to ensure optimal flow control of oil and other fluids during the refining process.

4. Pharmaceutical plants: Our valve's ability to regulate the flow of fluids makes it ideal for use in pharmaceutical plants.

Conclusion:

Our Double Flanged Eccentric Butterfly Valve is the perfect solution for clients looking for a reliable, high-quality valve that guarantees maximum efficiency and is cost-effective. We are committed to ensuring our clients receive only the best products that meet international standards. We welcome our clients to get in touch with us for more information or to place an order.

Double Flanged Eccentric Butterfly Valve features a bonded liner extending over the flanges. The double flange design is suitable for high pressure loading and for use in heavy industry, shipbuilding, severe vacuum applications and water treatment industry like potable water, water treatment and wastewater applications.

Standard: EN593/ ISO 5752 /BS5155/AWWA C504

Flange drilling is according to DIN 2501, BS4504, ANSI B16.1

Working pressure: 10bar/16bar/25bar

Testing pressure:

Shell: 15bar/24bar/37.5bar

Seal: 11bar/17.6bar/27.5bar

Type: Double Flange Eccentric, Double Flange Concentric

Material:

Body: DI/CI /Carbon Steel/Stainless Steel

Disc: DI/Stainless steel 304/316,AL-Bronze

Shaft: Stainless steel410/416/420 , Seat :EPDM/NBR

Coating: Internal and external with fusion bonded epoxy coating min250μm

Drawing of Double Flanged Eccentric Butterfly Valve

Factory Display

FAQ

Q. Do you accept OEM service?

A: Yes, we do.

Q. Can I get free samples?

A: Yes, And you only need to bear the delivery costs, if the samples are not too big.

Q. Can I have my own Logo on the product?

A: Yes, we're the professional manufacturer, so the OEM service is available. Q.What information should I let you know if I want to get a quotation? A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?

A: We accepte EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.

Why choose us?

• Our factory is capable of fulfilling large orders for Butterfly Valve products.
• Our company always takes win-win cooperation with customers, providing customers with high-quality products and perfect after-sales service as the development orientation.
• Our Butterfly Valve products meet global quality standards, ensuring reliability and durability.
• Quality and safety are always our top priorities, and this principle guides our entire product development.
• Our factory uses top-quality materials to produce Butterfly Valve products that last.
• From the primary product raw materials to the terminal consumer market, through system management and organic synergy between various industrial chains, the Group will build its core competitiveness, look forward to the future, and become a leader in the global competitive industrial chain.
• We offer custom packaging and shipping options for our Butterfly Valve products.
• We treat our business, our colleagues and various differences among people with a peaceful mind.
• We pride ourselves on offering customized Butterfly Valve products to meet customer requirements.
• We uphold a consistent level of professionalism, quality, credibility and repair for Double Flanged Eccentric Butterfly Valve.
