Wafer Check Valve

Introduction:

We are a leading manufacturer based in China that specializes in the production and distribution of high-quality valves. Our company is dedicated to providing our customers with the highest level of service, quality and value. One of our signature products is the wafer check valve. This valve is designed to provide reliable and efficient operation in a wide range of applications.

Features and Benefits:

The wafer check valve is a critical component in many industrial systems, and as such, the valve must meet stringent standards in terms of quality, performance and durability. Our wafer check valve has been engineered to meet the demands of even the most demanding applications, with features and benefits that set it apart from other products on the market.

One of the key features of our wafer check valve is its design. The valve is compact and lightweight, making it easy to install and use. The valve is constructed using the highest quality materials, including stainless steel and carbon steel, which provide exceptional corrosion resistance and durability. The valve is designed to operate in temperatures ranging from -29°C to 260°C, making it ideal for use in a wide range of applications.

Another important feature of our wafer check valve is its ease of maintenance. The valve can be easily disassembled for cleaning or replacement of worn parts, which ensures continuous operation and longer service life. The valve is equipped with a spring-loaded disc that ensures effective sealing and minimal pressure drop. The valve is also available in a range of sizes to meet the needs of a wide range of applications.

Our wafer check valve is an ideal choice for applications that require reliable operation and minimum maintenance. The valve is suitable for use in a variety of industries, such as oil and gas, chemical and petrochemical, pharmaceutical and water treatment. The valve is available in both manual and automated versions, which ensures that it can be adapted to a wide range of applications and systems.

Conclusion:

Our wafer check valve is a reliable and efficient solution for many industrial applications. With its high-quality construction, ease of use and maintenance, and exceptional performance, our product is the ideal choice for customers who demand the best. We are confident that our wafer check valve will meet and even exceed your expectations for performance, reliability, and value. If you have any questions about our product, please do not hesitate to contact us. We look forward to hearing from you!

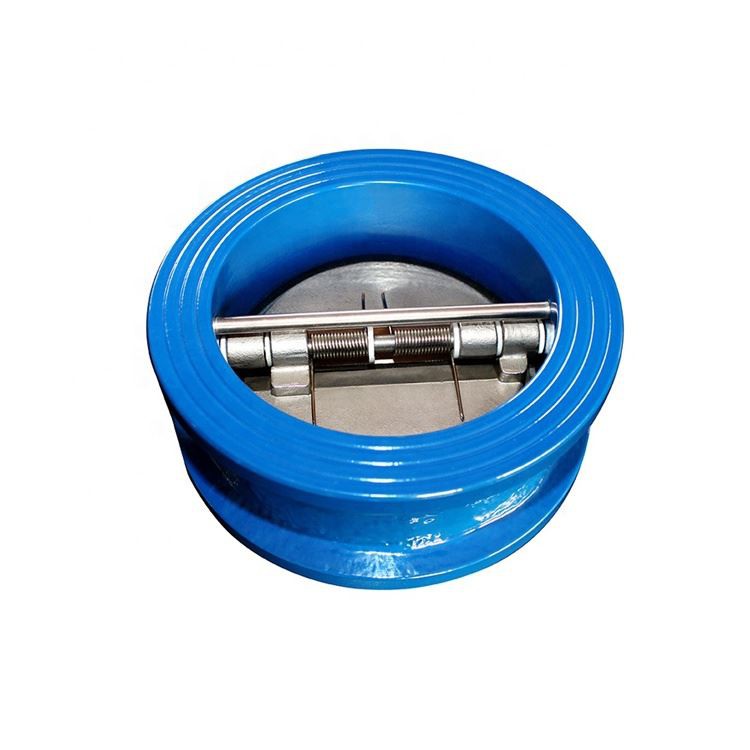

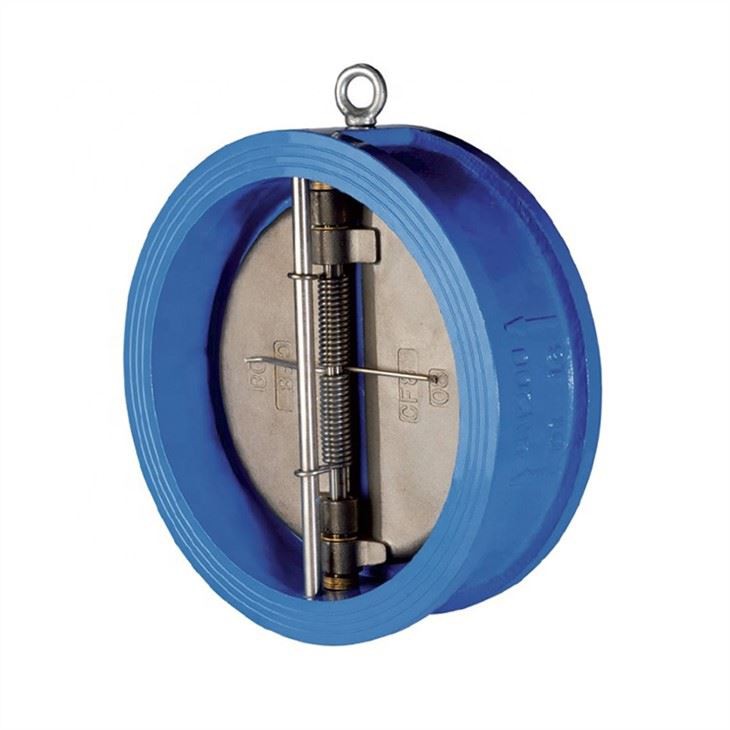

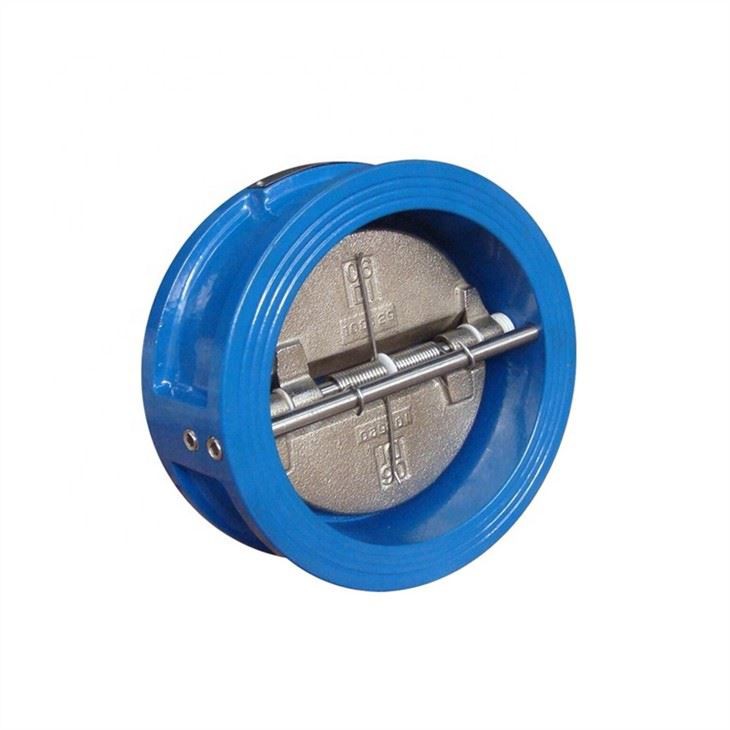

Wafer Check Valve

Wafer type dual plate check valve is one type of non-return valve with two torsion springs added to each of pair valve plates,which close the plates quickly and automatically, preventing the mediums from flowing back. Wafer dual plate check valve can be mounted between the two pipes in both horizontal and vertical directions. Wafer type dual plate check valve has features of compact structure, light weight and bidirectional. Flowspec Luokai can manufacture the wafer type dual plate check valve in accordance with API594 with material of cast iron, ductile iron and bronze.

Wafer Check Valve Standards

* Design & manufacturing: API594
* Face to face: ANSI B16.10, EN 558-1 series 16
* Matching flanges: ANSI B16.1/5, EN 1092, JIS10K, AS 2129
* Inspection & testing: API598, GB13927

Wafer Check Valve Features

* Small in size, light weight, compact structure, easy maintenance
* Quick action prevents of medium back flow
* Short face to face and good rigidity
* Easy installation, can be mounted horizontally and vertically
* Tightly sealed, without leakage
* Safe and reliable operation, high interference-resistance

Wafer Check Valve Technical Specifications

Type: Dual Plate Wafer Check Valve.

Size Range: DN40-DN1200

Working pressure: PN10, PN16.
Valve Design: API 594
Valve Pressure Testing & Inspection: API 598
Flange Connections: ANSI Class 125/150 or DIN PN10/16
Body: Cast Iron, Ductile Iron, Stainless Steel, WCB
Disc: DI nickel plated, SS316, SS304.
Spring: SS304, SS316.

Applicable temperature: from -40 to +230 degrees Celsius.

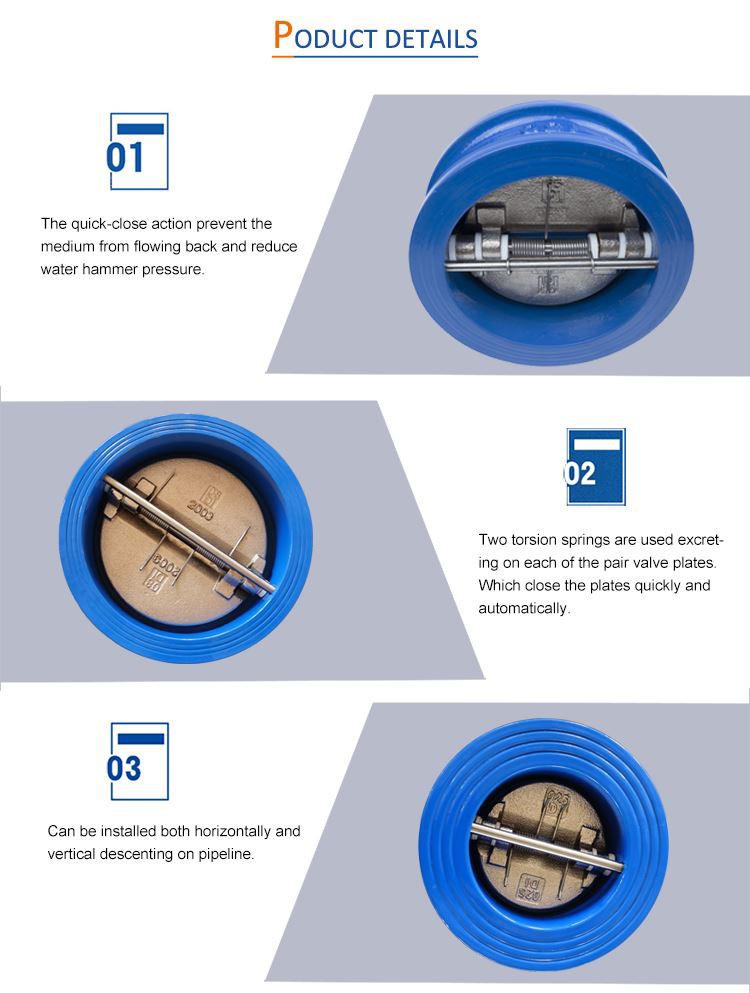

Wafer Check Valve details

Why choose us?

• Our company is a reliable source of high-quality Check Valve products that meet global demands.
• Regardless of our production technology, quality, output, and market development, we all seem to have reached the international level.
• We offer competitive prices on our Check Valve products without compromising on quality.
• Our company believes that only by adhering to the people-oriented enterprise concept can we gain the understanding and trust of our customers, and we have always done so. We have always provided customers with cost-effective products and services, set up a stage for employees to realize their life values, and make contributions to social progress.
• We offer a comprehensive range of Check Valve products that are durable, reliable, and built to last.
• hrough continuous accumulation and exercise,we have been able to accurately grasp the pulse of the market, and closely focus on the market and consumer needs, continuously follow up the market and launch new products.
• Our company is committed to ensuring customer satisfaction with our Check Valve products and service.
• We always adhere to the tenet of honesty, excellence, and win-win, seeking survival in competition and development in innovation. We are willing to work hand in hand with customers and peers to create a healthy, harmonious and orderly market ecological environment.
• We work closely with our customers to ensure their Check Valve product needs are met.
• Our mission is: to provide competitive Wafer Check Valve and services, continue to create maximum value for customers.
