Y Type Strainer

Introduction

Y Type Strainer is a type of mechanical filter designed to remove impurities and debris from liquid, gas or steam pipelines. It is widely used in a variety of industries such as petrochemical, pharmaceutical, food processing, water treatment, and more, to ensure the quality and integrity of the system. As a leading manufacturer based in China, we offer a comprehensive range of Y type strainers that are known for their outstanding performance, reliable quality, and affordable price. In this article, we will introduce our product and its features that make it an ideal choice for merchants worldwide.

Materials and Construction

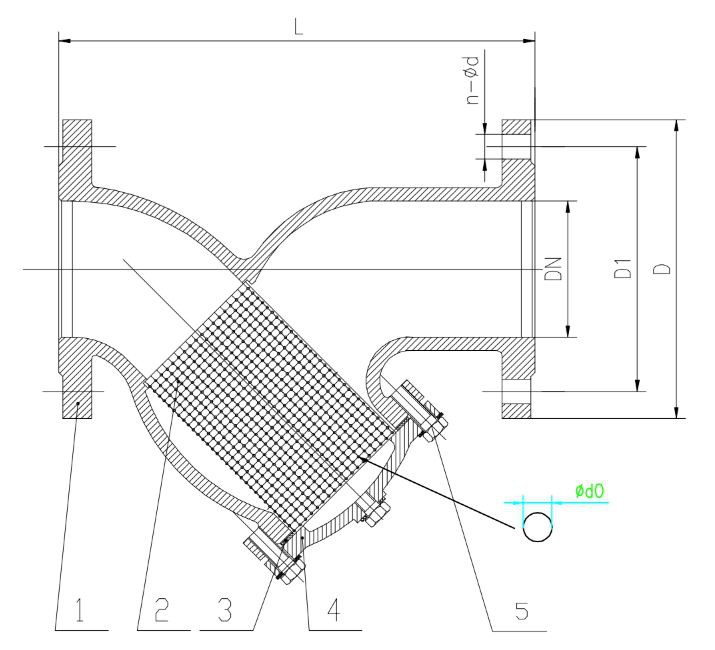

One of the most significant factors that determine the quality and durability of Y type strainers is the materials and construction. At our factory, we use high-quality materials such as stainless steel, carbon steel, and cast iron to ensure that our products are built to last long and withstand harsh operating conditions. Our Y type strainers feature a robust construction that is resistant to corrosion, erosion, and mechanical damage. The strainers consist of a body, a strainer screen, a bonnet, a cover, and a drain plug, all of which are designed to work together seamlessly to provide reliable filtration.

Filtration Efficiency

One of the primary functions of Y type strainers is to capture and remove debris and impurities from a liquid or gas stream. Our Y type strainers feature a high-efficiency filtration system that can trap particles as small as a few microns with minimal pressure drop. The strainer screen is precisely woven to provide uniform filtration, while the Y-shaped configuration of the strainer body ensures that the debris is collected in the bottom of the strainer rather than accumulating in the screen. This improves the flow rate and extends the life of the strainer.

Ease of Maintenance

Another advantage of using our Y type strainers is the ease of maintenance they provide. Our strainers are designed for easy cleaning and replacement of the strainer screen without interrupting the process flow. The drain plug at the bottom of the strainer body allows for the removal of any collected debris, while the inspection cover provides quick access to the screen. This saves time and reduces downtime, resulting in increased productivity and profitability for our customers.

Application Range

Our Y type strainers are suitable for a wide range of applications, including water treatment, chemical processing, oil and gas, food and beverage, and more. They can be used to filter liquids, gases, and steam, providing protection for pumps, valves, meters, and other critical components in the system. Our products are available in various sizes, materials, and end connections to meet the diverse needs of our customers.

Conclusion

In summary, our Y type strainers are an excellent choice for merchants looking for high-quality, reliable filtration solutions. With our advanced construction, efficient filtration system, and ease of maintenance, our products provide superior performance and maximum value for money. As a trusted manufacturer with extensive experience, we are committed to providing our customers with exceptional products and excellent service. Contact us today to learn more about our Y type strainers or to place an order.

Y Type Strainer is device for mechanically removing unwanted solids from liquids, gas or steam lines by means of a perforated or wire mesh straining element. It is used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.

Y Type Strainer Description

* Body Material: Cast Iron or Ductile Iron
* Construction: Y-Strainer Type or Basket Strainer Type
* Stainless Steel Screen Available in Wide Variety of Meshes and Perforations
* Bolted-On Cover Provides Easy Access to Interior for Routine Maintenance
* Design Prohibits Galling or Scoring of Seating Surfaces
* Epoxy Powder Coating or Paint Coating
* Size Range: NPS 2" ~ 12" ; DN50 ~ DN300
* Pressure Rating: Class 125 / Class 150 ; PN10 / PN16
* End Type: FF, RF, Threaded ( NPT / BSP / BSPT ), etc.

Y Type Strainer Technical Specifications

* Design and Manufacture: ASME B16.34
* Face to Face Dimensions: ASME B16.10 or DIN 3202 F6
* Flange Ends Dimensions: ASME B16.1 or DIN 2501 PN10 / PN16 or BS 10 Table D and E or AS 2129 Table D and E
* Threaded Ends Connection: ASME B1.20.1 or ISO 228 or DIN 2999
* Inspection & Test: API 598 or DIN 3230

Y Type Strainer FEATURES

Main parts of all kinds of pumps, valves in the pipeline
Mainly used to filter dirt, rust and other debris

Y Type Strainer
